Road Construction Material 3mm 50x50mm Wire Mesh Welder

Product Categories
Anping Tianke wire mesh equipment Co., Ltd
Contact Now

Road Construction Material 3mm 50x50mm Wire Mesh Welder

Brand Name : Tianke

Model Number : TK-HWJ2500

Place of Origin : Hebei,China

MOQ : One Set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 15 sets/Month

Delivery Time : 10 work days

Packaging Details : Nude packing in container

Product Name : Roll Mesh Welding Machine

Wire Diameter : 3-6 mm

Mesh Type : Roll mesh

Number of electrodes : 50 pcs

Warp wire : Wire coils

Weft wire : Pre cut wire

Mesh Size : 50*50mm - 300*300mm

Mesh Length : Adjustable

Machine Type : Welding Manipulator

Welding Current : Adjustable

Usage : Construction material,Security fence used in prison,transformer substation,construction,

After Warranty Service : Online support; Video technical support; Field installation, commissioning and training; Field maintenance and repair service.

Material : Galvanized wire,black wire,low carbon steel wire

Market type : Ordinary Product

Contact Now

Road Construction 3-6mm Roll Mesh Welding Machine Construction Material

Roll Mesh Welding Machine Description

Roll mesh welding machine belongs to a high degree of automation machine.The warp wire is feeding by coil wire.The weft wire is pre straightening and cutting.The machine belongs to resistance welding machine, all welding points are welded at one time.The welding is full automatic.The aperture is adjustable.the100x100mm,150x150mm aperture mesh panel is mostly used as building material.The length of the panel can be set in the control system.2m length,3m,4m,5m or 6m is all ok for the machine.

Roll Mesh Welding Machine Advantage

1. The warp wire is feeding by coil wires.The machine can continuously weld a large number of meshes without frequently adding warp wire.

2. The automatic cutting machine can cut the mesh to panels.The blade quality of the cutting machine is very good, it can be used for about 4 years.

3. The welding current and welding speed can be adjusted in the control cabinet.

4. The width of the mesh is also adjustable.The mesh smaller than the customized width can be welded.

5. Machines do not weld only one diameter. It can weld a certain range of wire diameter.

Panel Mesh Welding Machine Parameter

Name of Commodity Panel Mesh Welding Machine
Wire Diameter 3-6mm
Mesh Size 50-300mm
Mesh Width 2500mm
Mesh Length Adjustable
Power 4kw
Warp Wire Feeding Coil Wire
Weft Wire Feeding Pre straightening and cutting wire
Control CNC PLC and visual touch screen
Transformer 125kva*6 sets
Voltage 3 phase 380V / 220V / 440V / 415V
Overall Dimension 16*3.2*1.6m
Weight 4500kg
Warranty 12 months
Oversea Service Support

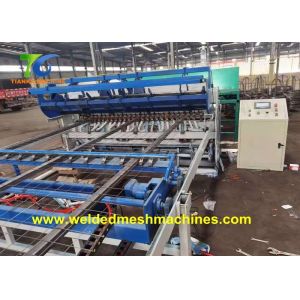

Main Welding Machine with control system

Control system: The visual touch screen is just like a computer.Easy to operate.

Road Construction Material 3mm 50x50mm Wire Mesh Welder

Mesh Pulling System: It is controlled by servo motor and air cylinders.It can pull the mesh in smooth speed.

Road Construction Material 3mm 50x50mm Wire Mesh Welder

Automatic Mesh Cutting Machine:This device can cut the mesh to panels in different length.

Road Construction Material 3mm 50x50mm Wire Mesh Welder

Finish Mesh

Road Construction Material 3mm 50x50mm Wire Mesh Welder
